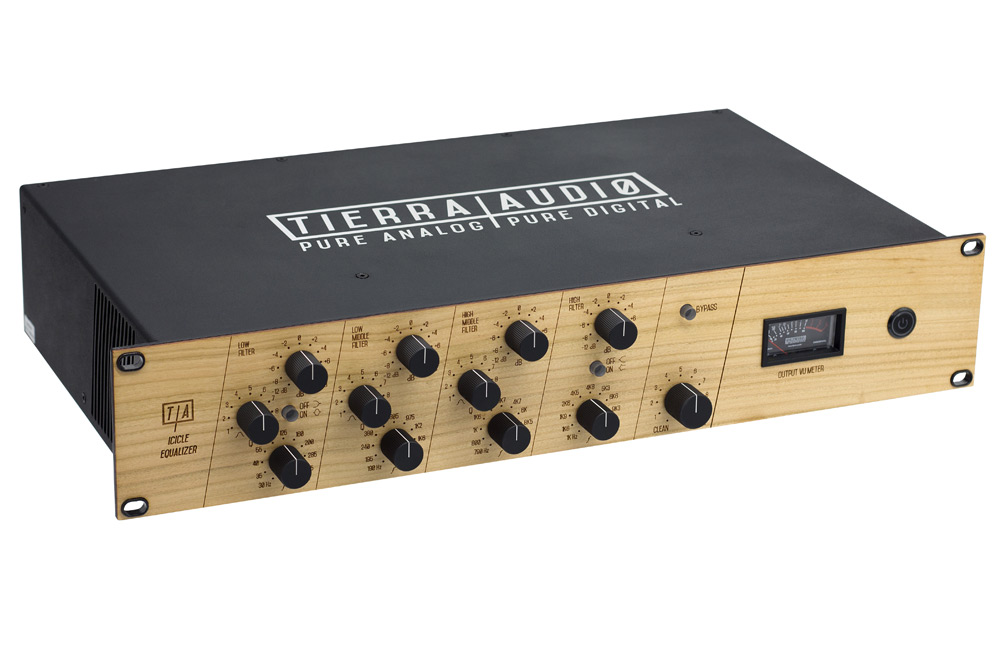

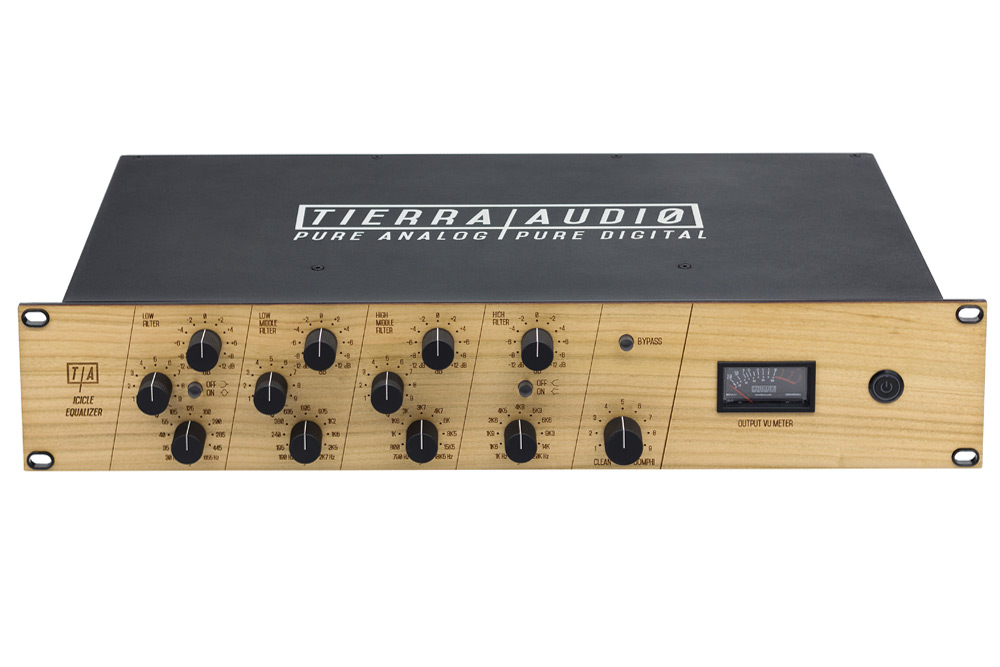

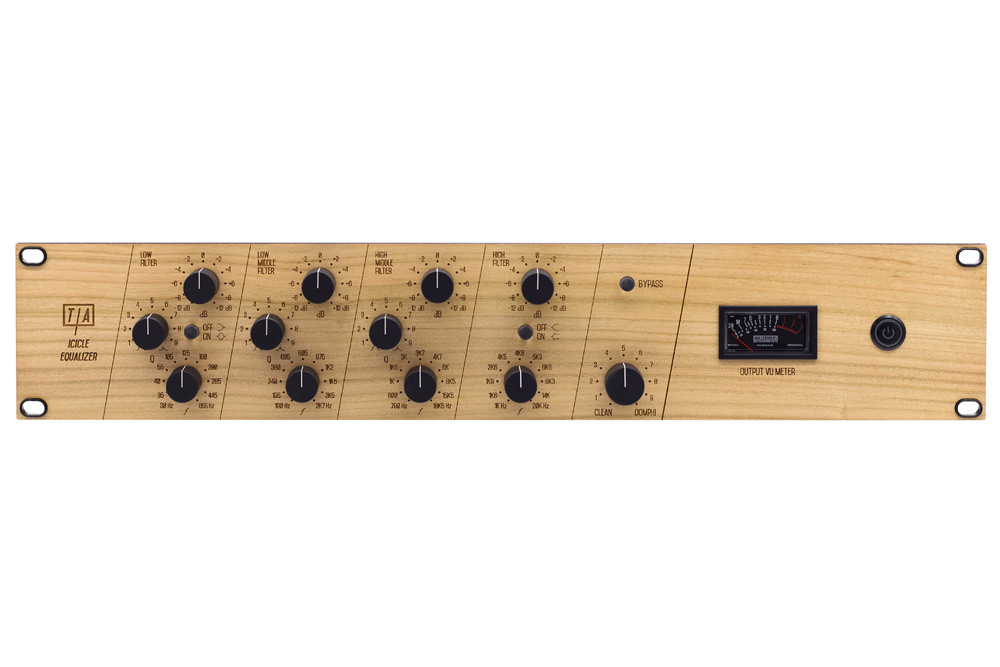

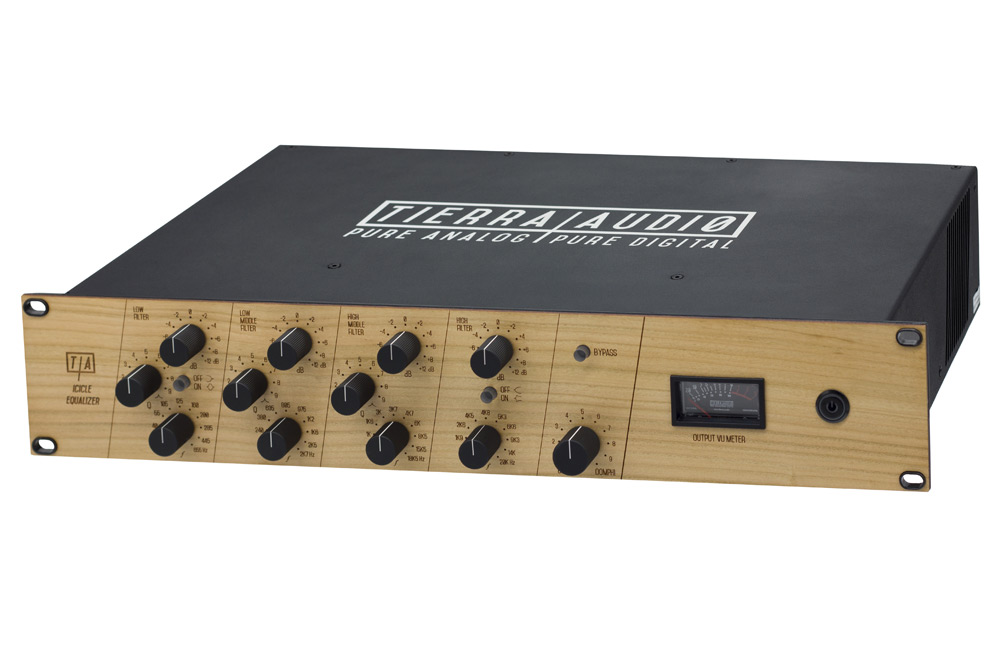

Icicle Equalizer MKII
Powerful 4-band monoparametric equalizer. A versatile tool fit for every situation.
ex VAT£1,162.50
VAT: £232.50
£1,395.00
Product SKU: TA-DEV-005-003
Barcode: 8425402537848
Description
Icicle Equalizer is your ally for surgically removing any annoying frequency or increasing a region.
Edit without limits!
With Icicle Equalizer you can choose between our cleanest sound, or a more coloured sound with the OOMPH!
Clean sound
Ultra-clear and clean sound, perfect for equalizing voices, guitars or strings.
OOMPH! sound
Perfect to add a special colour to your tracks, from the characteristic grain of tape recording, to higher levels of distortion giving a unique personality to your drums and basses.
Benefit from the OOMPH! feature
Icicle Equalizer is empowered to add extra analog color thanks to Germanium Diodes distortion.
OOMPH! will grant your sound with the harmonic’s excitation from a slightly soft distortion to an agressive one. Perfect for all those situations where you are looking for that kind of rich and warm sound.Broaden your voices
Sure enough, you have envied the broadened voices of your favourite mixes a million times.
Icicle Equalizer comes with a treble filter that reaches up to 29,4kHz.
Therefore, you will be able to enhance your voices’ glow up to the maximum, adding a sense of broadness and proximity.
Want better results? Try the treble bandwidth with a lowered Q to reduce the annoying frequencies and control de Harsh effect.
Down to the last detail
Icicle Equalizer fits perfectly those situations where some annoying frequencies arise, either due to an acoustic space resonance, to the instrument construction, or because of the presence of certain frequency registries unneeded in the final mix.
To get rid of them, we suggest choosing a small Q and increasing that frequency range gain. Search for the said frequency adjusting the FREQUENCY knob until noticing it intensifies. Beware of keeping your monitor’s volume not too high.
Once found, decrease the gain to the minimum and… Voilà! The frequency will vanish.
Boost your FX
Do not leave your delivery channels untreated. The reverb channel often contains unnecessary frequencies that soil the final sound. Icicle Equalizer is ideal for these situations.
Try removing the effects’ low-end or even eliciting a different sensation by creatively emphasizing different ranges of frequencies.
Technical specifications
| Line Output | Maximum output: +26 dBu. | |
| Frequency response | -0.3 dB at 20 Hz, -0,3 dB at 20 kHz. | |
| Harmonic Distortion | Less than 0,0009% at +4 dBu output in the range of 20 Hz to 20 kHz. | |
| Gain Level | From +50 dB. | |
| Background noise (Noise floor) | Less than 102 dBu. | |
| Signal to Noise Ratio (SNR) | 100 dB, 20 Hz – 20 kHz at +4 dBu output. | |
| Frequencies | LF: 30 to 655 Hz; -12 to 12 dB LMF: 190 Hz to 2.7 kHz; -12 to 12 dB LHF: 790 Hz to 18.5 kHz; -12 to 12 dB HF: 1 to 20 kHz; – 12 to 12 dB |
|

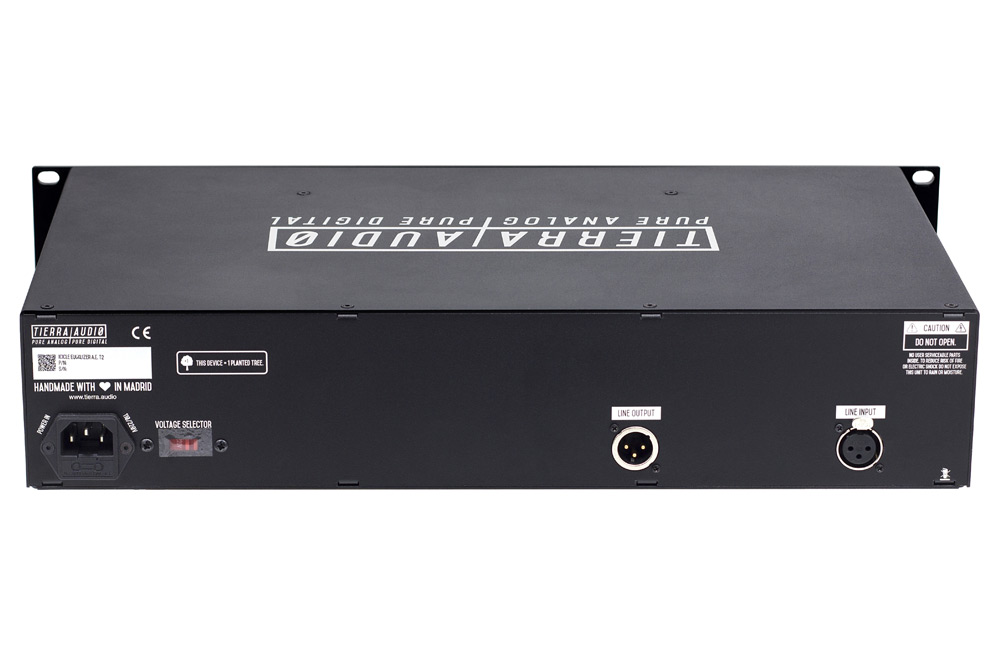

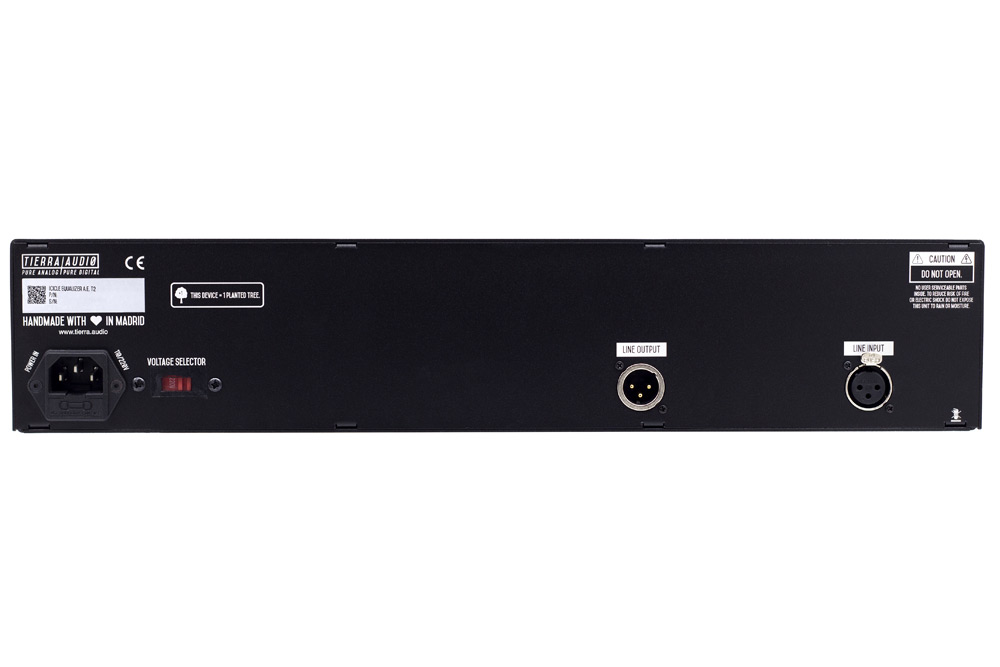

| Power source | Two configurable voltage source settings on the back panel: 1) 110 V AC 60 Hz and 2) 220 V AC 50 Hz. | |
| Operating temperature range | Between 32º and 104º Fahrenheit (between 0º and 40º Celsius). | |
| Power source fuse | 500 mA. |
